Heat-shrinkable sleeve of polyolefin, thin-walled
WSH-C Series 300
Material: Polyolefin
Properties: Thin-walled, radiation crosslinked, very flexible, with extremely low inflammability
Shrinkage rate: 2:1
Operating temperature: -55°C bis +135°C
Shrinkage temperature: 120°C
Dielectric strength: 20 kV/mm min
Certifications: UL 224 / MIL-1-23053 /CSA/ DEF.STAN 59-97 AUSG. 3
Standard colors: Black, red, white, blue, yellow and transparent
(Absolutely necessary to indicate request with order.)
Transparent not UL-certified

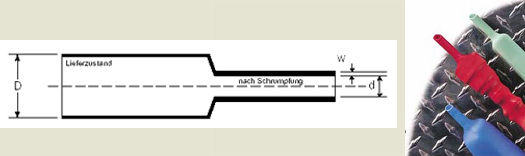

| Articlel No. |
Ø before shrinkage |
Ø after shrinkage |
Wall- thickness |
Roll length |
VPE |
|---|---|---|---|---|---|
| D(mm) | d(mm) | W(mm) | (m) | ||
| WSH-C 15 | 1,5 | 0,5 | 0,45 | 300 | 1 Roll |
| WSH-C 30 | 3,0 | 1,0 | 0,55 | 150 | 1 Roll |
| WSH-C 48 | 4,8 | 1,6 | 0,70 | 75 | 1 Roll |
| WSH-C 60 | 6,0 | 2,0 | 0,65 | 75 | 1 Roll |
| WSH-C 90 | 9,0 | 3,0 | 0,75 | 75 | 1 Roll |
| WSH-C 120 | 12,0 | 4,0 | 0,75 | 50 | 1 Roll |
| WSH-C 190 | 18,0 | 6,0 | 0,85 | 30 | 1 Roll |
| WSH-C 240 | 24,0 | 8,0 | 1,00 | 30 | 1 Roll |
| SH-C 390 | 39,0 | 13,0 | 1,15 | 30 | 1 Roll |
The WSH-C heat-shrinkable sleeve is very flexible, with extremely low inflammability and resistant against usual liquids and solvents. It is especially well suited for sheathing parts with diameter differences.
All specifications without guarantee. Right to changes reserved.
