Heat-shrinkable sleeve of polyolefin, thin-walled
WSN-C
Material: Polyolefin
Properties: Thin-walled, very flexible, good electrical and mechanical protection
Shrinkage rate: 2:1
Operating temperature: -45°C to +105°C
Shrinkage temperature: 80°C
Dielectric strength: 20 kV/mm min
Standard colors: Black
(Absolutely necessary to indicate color please with order.)

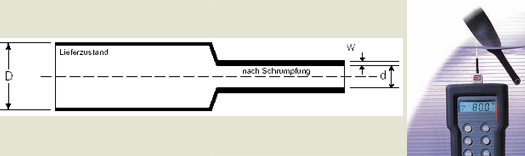

| Article No. |
Dimension | Ø before shrinkage |
Ø after shrinkage |
Wall- thickness |
Roll length |
VPE |
|---|---|---|---|---|---|---|
| Inch | D(mm) | d(mm) | W(mm) | (m) | ||
| WSN-C 32 | 1/8 " | 3,2 | 1,6 | 0,51 | 300 | 1 Roll |
| WSN-C 48 | 3/16 " | 4,8 | 2,4 | 0,51 | 300 | 1 Roll |
| WSN-C 64 | 1/4 " | 6,4 | 3,2 | 0,64 | 300 | 1 Roll |
| WSN-C 95 | 3/8 " | 9,5 | 4,8 | 0,64 | 150 | 1 Roll |
| WSN-C 127 | 1/2 " | 12,7 | 6,4 | 0,64 | 100 | 1 Roll |
| WSN-C 191 | 3/4 " | 19,0 | 9,5 | 0,76 | 50 | 1 Roll |
| WSN-C 254 | 1 " | 25,4 | 12,7 | 0,89 | 50 | 1 Roll |
The WSN-C heat-shrinkable sleeve is of flexible material, with low shrink-on temperature. Ideal for employment in production lines of mass production, as well as in cable preparation.
All specifications without guarantee. Right to changes reserved.
