Heat-shrinkable sleeve of polyolefin, thin-walled
WSR-C
Material: Polyolefin, with internal adhesive
Properties: Thin-walled, radiation crosslinked, low inflammability
Shrinkage rate: 3:1
Operating temperature: -55°C to +110°C
Shrinkage temperature: 120°C
Dielectric strength: 20 kV/mm min
Bar length: 1.22 m, possible for wound goods
Standard colors: Black and transparent
Special colors: Yellow, white, red, blue, green and brown
(Absolutely necessary to indicate request with order.)
Transparent not low inflammability

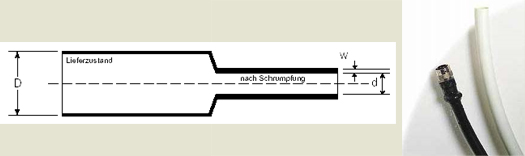

| Article No. |
Ø before shrinkage |
Øafter shrinkage |
Wall- thickness |
Thermoplastic adhesive |
VPE |
|---|---|---|---|---|---|
| D(mm) | d(mm) | W(mm) | (mm) | total | |
| WSR-C 30 | 3,0 | 1,0 | 1,0 | 0,5 | 1 |
| WSR-C 48 | 4,8 | 1,6 | 1,0 | 0,5 | 1 |
| WSR-C 60 | 6,0 | 2,0 | 1,0 | 0,5 | 1 |
| WSR-C 90 | 9,0 | 3,0 | 1,40 | 0,6 | 1 |
| WSR-C 120 | 12,0 | 4,0 | 1,75 | 0,7 | 1 |
| WSR-C 190 | 19,0 | 6,0 | 2,25 | 0,8 | 1 |
| WSR-C 240 | 24,0 | 8,0 | 2,50 | 1,0 | 1 |
| WSR-C 390 | 39,0 | 13,0 | 2,50 | 1,0 | 1 |
The WSR-C heat-shrinkable sleeve offers exceptional insulation characteristics of electric connections, moisture protection in case of encapsulation and mechanical stress-relief of cable connectors. It is resistant against most customary chemicals and solvents.
All specifications without guarantee. Right to changes reserved.
