Heat-shrinkable sleeve of polyolefin, thin-walled
WST-C Series 201
Material: Polyolefin
Properties: Thin-walled, radiation crosslinked, very flexible, low inflammability
Shrinkage rate: 3:1
Operating temperature: -55°C to +135°C
Shrinkage temperature: 120°C
Dielectric strength: 20 kV/mm min
Certifications: MIL-1-23053 DEF.STAN 59-97 AUSG. 3/ UL 224
Standard colors: Green, yellow
(Absolutely necessary to indicate request with order.)
Transparent not UL-certified
| Article No. |

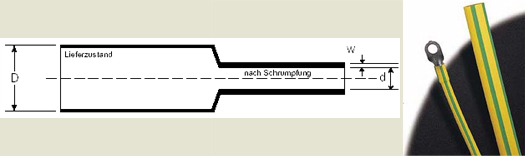

Dimension | Ø before shrinkage |
Ø after shrinkage |
Wall- thickness |
Roll length |
VPE |
|---|---|---|---|---|---|---|
| Inch | D(mm) | d(mm) | W(mm) | (m) | ||
| WST-C 32 | 1/8 " | 3,2 | 1,0 | 0,55 | 150 | 1 Roll |
| WST-C 48 | 3/16 " | 4,8 | 1,5 | 0,60 | 75 | 1 Roll |
| WST-C 64 | 1/4 " | 6,4 | 2,0 | 0,65 | 75 | 1 Roll |
| WST-C 95 | 3/8 " | 9,5 | 3,0 | 0,75 | 75 | 1 Roll |
| WST-C 127 | 1/2 " | 12,7 | 4,0 | 0,75 | 50 | 1 Roll |
| WST-C 191 | 3/4 " | 19,0 | 6,0 | 0,85 | 30 | 1 Roll |
| WST-C 254 | 1 " | 25,4 | 8,0 | 1,00 | 30 | 1 Roll |
| WST-C 381 | 1 1/2 " | 38,1 | 13,0 | 1,15 | 30 | 1 Roll |
The WST C heat-shrinkable sleeve is two-color extruded, with very good physical, chemical and electric properties. Typical areas of application are the insulation and identification of lines, especially of underground cables.
All specifications without guarantee. Right to changes reserved.
