Heat-shrinkable sleeve of polyolefin, thin-walled

WSW-C

Material: Polyolefin

Properties:Thin-walled, halogen-free, flexible, flame resistant, low smoke development with combustion

Shrinkage rate: 2:1

Operating temperature: -40°C to +105°C

Shrinkage temperature: 120°C

Dielectric strength: 25 kV/mm min

Certifications: DEF.STAN 59-97/ Ausg. 3 Type 8

Standard colors: Black, yellow, white

(Absolutely necessary to indicate color please with order.)

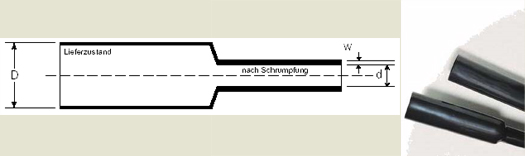

Article No.	Ø before shrinkage	Ø after shrinkage	Wall- thickness	Length	VPE
	D(mm)	d(mm)	W(mm)	(m)
WSW-C 16	1,6	0,8	0,45	300	1 Roll
WSW-C 24	2,4	1,2	0,51	300	1 Roll
WSW-C 32	3,2	1,6	0,51	300	1 Roll
WSW-C 48	4,8	2,4	0,51	300	1 Roll
WSW-C 64	6,4	3,2	0,64	300	1 Roll
WSW-C 95	9,5	4,8	0,64	150	1 Roll
WSW-C 127	12,7	6,4	0,64	100	1 Roll
WSW-C 160	16,0	8,0	0,64	100	1 Roll
WSW-C 190	19,0	9,5	0,76	50	1 Roll
WSW-C 254	25,4	12,7	0,89	50	1 Roll
WSW-C 320	32,0	16,0	0,89	50	1 Roll
WSW-C 381	38,1	19,0	1,02	50	1 Roll
WSW-C 508	50,8	25,4	1,14	50	1 Roll
WSW-C 762	76,2	38,1	1,27	25	1 Roll
WSW-C 1016	101,6	50,8	1,40	25	1 Roll

The WSW-C heat-shrinkable sleeve indicates excellent properties with respect to fire security, in combination with low emission of toxic gases in case of combustion.

Main applications are the protection and the insulation of cables, cable looms, electronic and electrical component parts.
In particular in cramped premises or where systems ...
